CopperShield® Push Plate Switches

Designed with CuVerro® antimicrobial copper surface material which is registered by the EPA to kill more than 99.9% of bacteria, including MRSA, within two hours. That is the kind of protection your customers and employees deserve. No special cleaners are required to keep this attractive, brushed finish looking its best.

Automatic door applications:

  • Surgical Suites in Hospitals & Clinics
  • Medical & Semiconductor Clean Rooms
  • Rest Rooms
  • Restaurants
  • Anywhere hygiene and convenience are needed

6" Square
6" Round

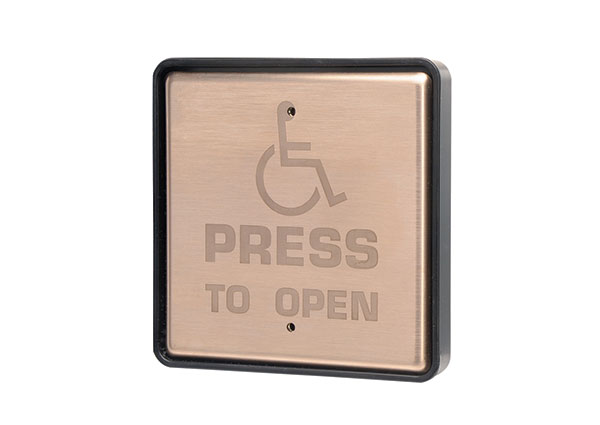

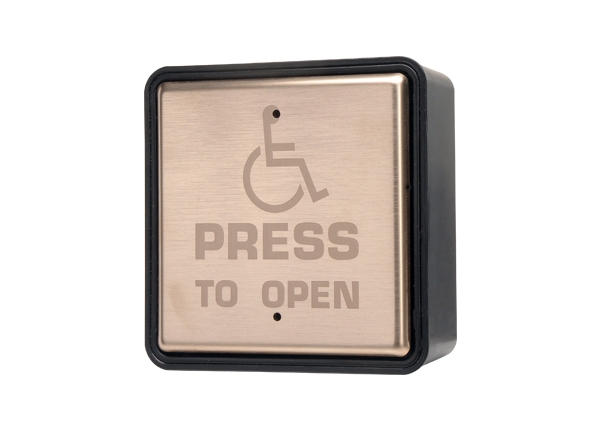

4.5" Square
4.5" Round
4.5" Square
Design
StyleSquare
Material/Finish18-gauge Cuverro® Copper/Brushed Finish
Standard EngravingsPlain (None)
Handicap Logo/Press To Open (HPTO)
Press To Open (PTO)
Handicap Logo (HCP)
Part Number(s)See Hardware Catalog at top of page for details
Operation
Electrical/PowerLow Voltage:
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature-40˚C to 60˚C
Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C)
Dimensions (WxHxD)Switch: 4.50" x 4.50" x 1.50" (115x115x38)
Radio-Control Signal RangeUp to 100 feet with Larco's Ultra-small Transmitter
Activation Switch Type(1) NO or NC
Activation Switch Rating15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
MountingSwitch only (includes Adapter Plate)
4.5" Universal Box: 5.06” x 5.06” x 1.75” (129x129x45)
Utility Box: 4.00" x 4.00" x 4.00" (102x102x102)
Wireless Communication433 MHz Receiver & Transmitters
300 MHz Receiver & Transmitters

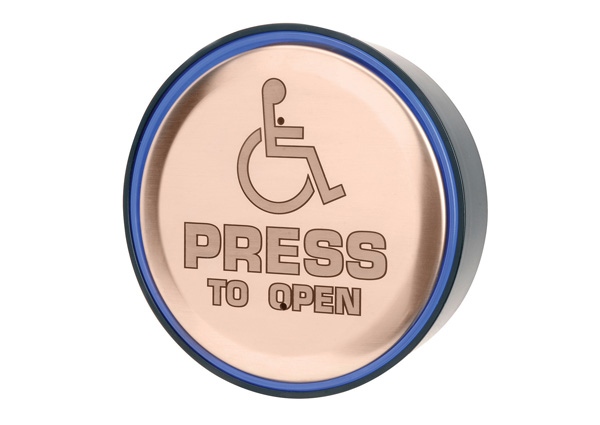

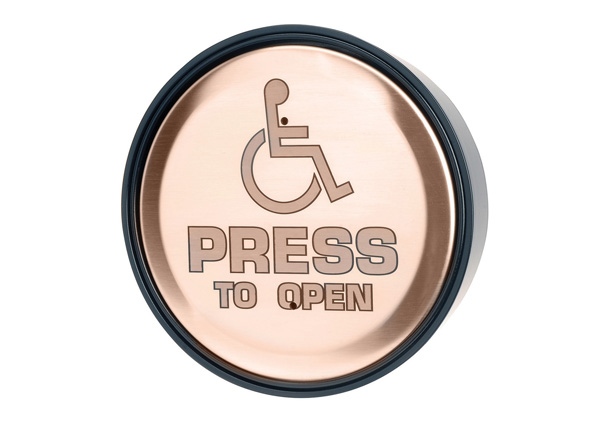

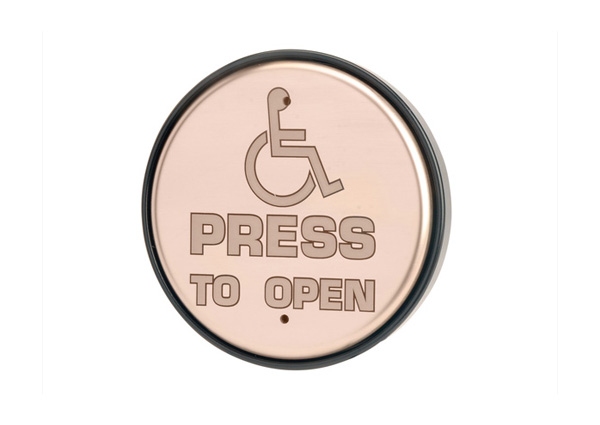

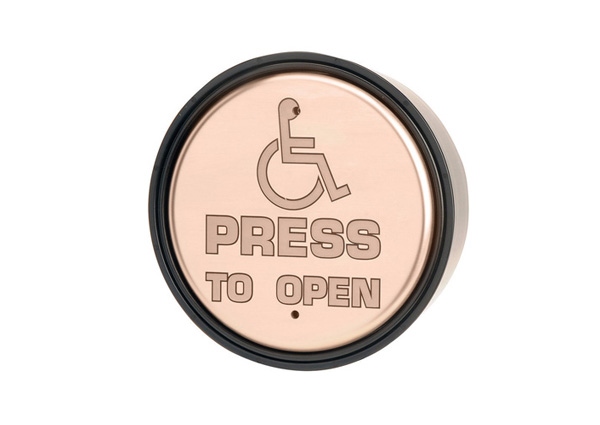

4.5" Round
Design
StyleRound
Material/Finish18-gauge Cuverro® Copper/Brushed Finish
Standard EngravingsPlain (None)
Handicap Logo/Press To Open (HPTO)
Press To Open (PTO)
Handicap Logo (HCP)
Part Number(s)See Hardware Catalog at top of page for details
Operation
Electrical/PowerLow Voltage:
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature-40˚C to 60˚C
Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C)
Dimensions (WxD)Switch: 4.50" Diameter x 1.50"(115x38)
Radio-Control Signal RangeUp to 100 feet with Larco's Ultra Small Transmitters
Activation Switch Type(1) NO or NC
Activation Switch Rating15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
MountingSwitch only (includes Adapter Plate)
4.5” Round Box: 5.17” Diameter and 1.85” (132x47)
4.5” Universal Box: 5.06” x 5.06” x 1.75” (129x129x45)
Utility Box: 4.00" x 4.00" x 4.00" (102x102x102)
Wireless Communication433 MHz Receiver & Transmitters
300 MHz Receiver & Transmitters

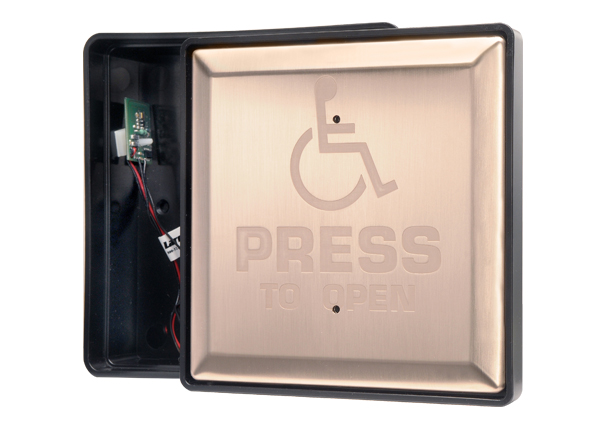

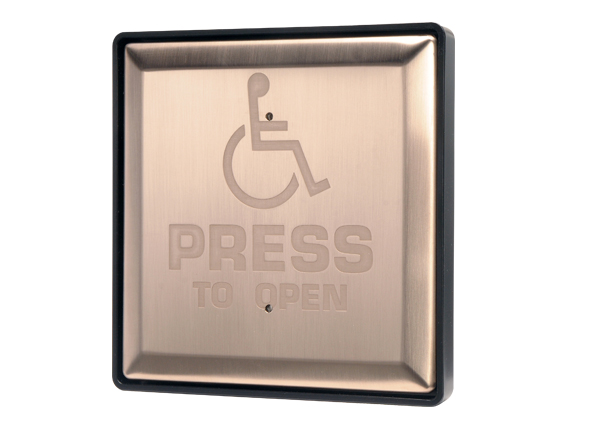

6" Square
Design
StyleSquare
Material/Finish18-gauge Cuverro® Copper/Brushed Finish
Standard EngravingsPlain (None)
Handicap Logo/Press To Open (HPTO)
Press To Open (PTO)
Handicap Logo (HCP)
Part Number(s)See Hardware Catalog at top of page for details
Operation
Electrical/PowerLow Voltage:
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature-40˚C to 60˚C
Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C)
Dimensions (WxHxD) Switch: 6.00" x 6.00" x 1.50" (153x153x38)
Radio-Control Signal RangeUp to 100 feet with Larco's Ultra-small Transmitter
Activation Switch Type(1) NO or NC
Activation Switch Rating15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
MountingSwitch only (includes Adapter Plate)
6" Universal Box: 6.63" x 6.63"x 1.80" (169x169x47)
Utility Box: 4.00" x 4.00" x 4.00" (102x102x102)
Wireless Communication433 MHz Receiver & Transmitters
300 MHz Receiver & Transmitters

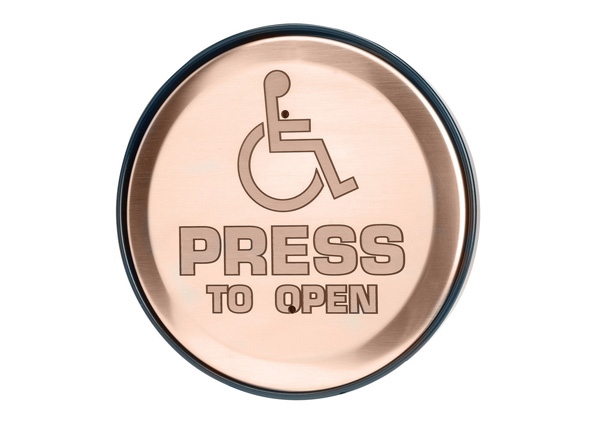

6" Round
Design
StyleRound
Material/Finish18-gauge Cuverro® Copper/Brushed Finish
Standard EngravingsPlain (None)
Handicap Logo/Press To Open (HPTO)
Press To Open (PTO)
Handicap Logo (HCP)
Part Number(s)See Hardware Catalog at top of page for details
Operation
Electrical/PowerLow Voltage:
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature-40˚C to 60˚C
Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C)
Dimensions (WxD)Switch: 6.00" Diameter x 1.50" (152x38)
Radio-Control Signal RangeUp to 100 feet with Larco's Ultra Small Transmitters
Activation Switch Type(1) NO or NC
Activation Switch Rating15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
MountingSwitch only (includes Adapter Plate)
6" Universal Box: 6.63" x 6.63"x 1.80" (169x169x47)
6" Round Box" 6.63” Diameter x 1.83” Deep (169x47)
Utility Box: 4.00" x 4.00" x 4.00" (102x102x102)
Wireless Communication433 MHz Receiver & Transmitters
300 MHz Receiver & Transmitters
