Jamb Switches, Stainless Steel

Quality push plate switches in a smaller footprint

Larco's jamb push plate switches are made to fit on a door jamb or between doors in vestibule applications. Choose from radio controlled and hardwired switches. Accessories and different size mounting boxes are also available.

  • Small Footprint

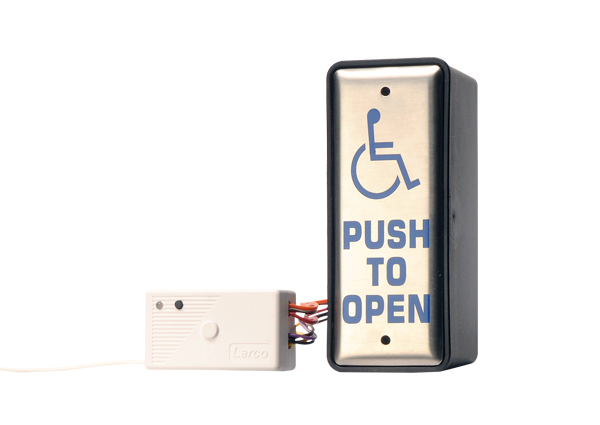

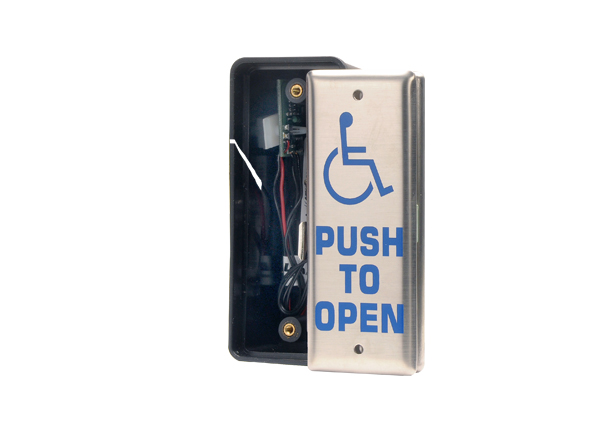

  • All of our push plates can be ordered with a wireless transmitter, which makes installation a snap.

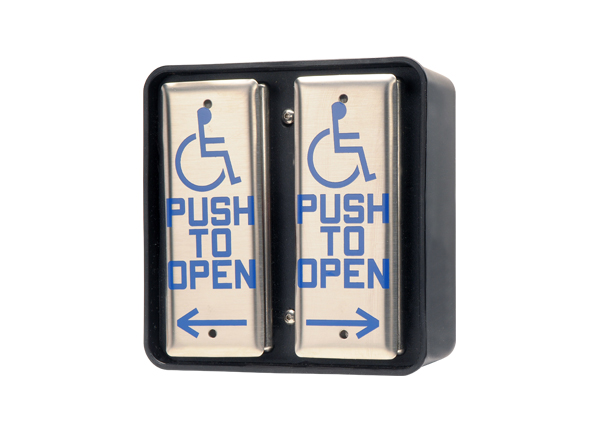

  • Combine two jamb switches in a 4.5" or 6" Universal Box
  • Weather-resistant material suitable for all weather conditions
  • Combine two jamb switches into one Universal Box to unclutter your vestibule area. Choose from a variety of engravings for your jamb plates, then select if you want them installed in a 4-1/2" or 6" Universal Box.
Jamb Style Switch
Design
Part Number Various
(Contact us for specifics)
Style Jamb Style
Material/Finish 18-gauge Stainless Steel/Brushed Finish

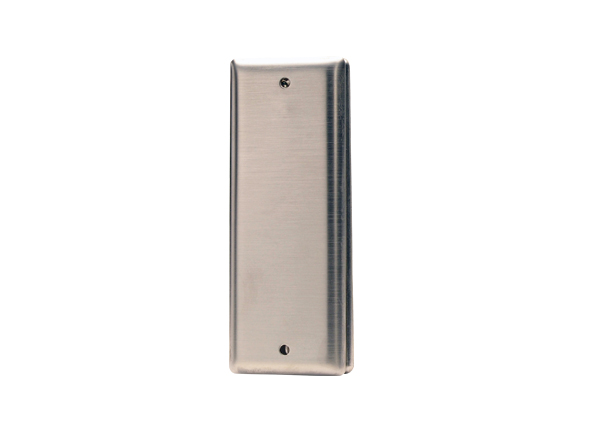

Standard Engravings Plain (None)

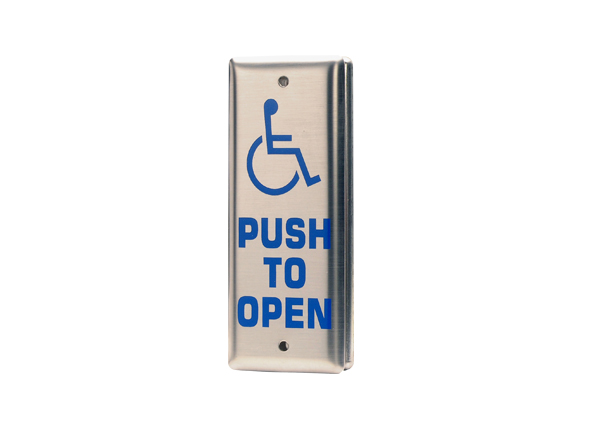

Handicap Logo/Press To Open (HPTO)

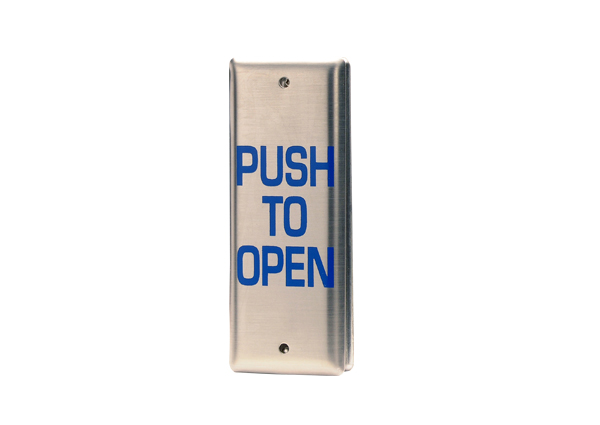

Press To Open (PTO)

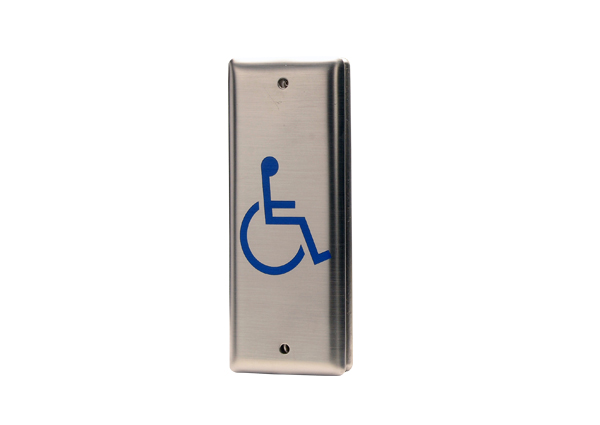

Handicap Logo (HCP)
Part Number(s) See Hardware Catalog at to of page for details
Operation
Electrical/Power Low Voltage
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature -40°C to 60°C
Optional Transmitter: 433 MHz -4°F (-20°C) to 122°F (55°C)
Dimensions (WxHxD) 1.75" x 4.5" x 1.5" (45x115x38)
Radio-Control Signal Range Up to 100 feet with Larco's Ultra-small Transmitter
Activation Switch Type (1) NO or NC
Activation Switch Rating 15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
Mounting With or without Jamb Mounting Box
Wireless Communication 433 MHz Receiver & Transmitters
