4.5" Stainless Steel Push Plate Switches

Larco 4.5" stainless steel push plate switches are available in square or round shapes, with standard and custom engravings. Choose from radio controlled and hardwired switches. Accessories and two types of mounting boxes are also available. Larco push plate switches are perfect for any automatic door system, especially where handicap access is needed.

  • Versatile adapter for easy installation comes with every switch
  • Small footprint
  • Mount directly on wall box or in one of our Universal or Round Boxes
  • Designed and manufactured to US and European certification standards

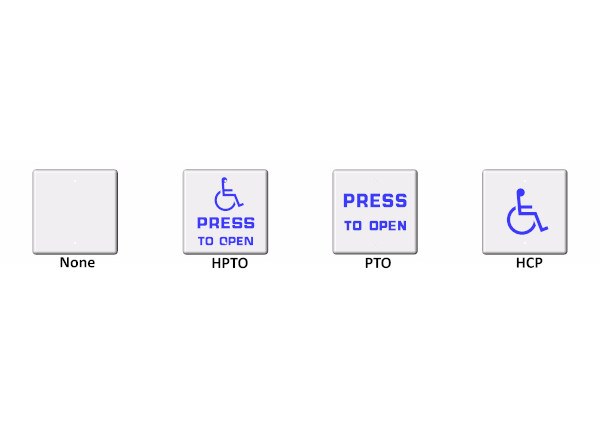

Available in two shapes and a variety of engravings
Larco wall switches are available in round or square shape and with all the traditional engravings. Directional arrows, customized messages, including foreign languages, also are available.

Create some light
Designed to save energy, Larco's Blue Diamond back-lit wall switches incorporate energy efficient solutions, including a monolithic constant-current regulator, light guiding, and LED technology.

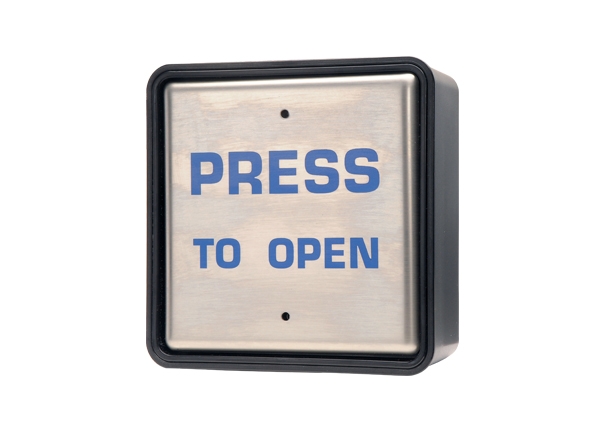

4.5" Square
Design
StyleSquare
Material/Finish18-gauge Stainless Steel/Brushed Finish
Standard EngravingsPlain (None)
Handicap Logo/Press To Open (HPTO)
Press To Open (PTO)
Handicap Logo (HCP)
Part Number(s)See Hardware Catalog at top of page for details
Operation
Electrical/PowerLow Voltage:
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature-40˚C to 60˚C
Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C)
Dimensions (WxHxD)Switch: 4.50" x 4.50" x 1.50" (115x115x38)
Radio-Control Signal RangeUp to 100 feet with Larco's Ultra-small Transmitter
Activation Switch Type(1) NO or NC
Activation Switch Rating15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
MountingSwitch only (includes Adapter Plate)

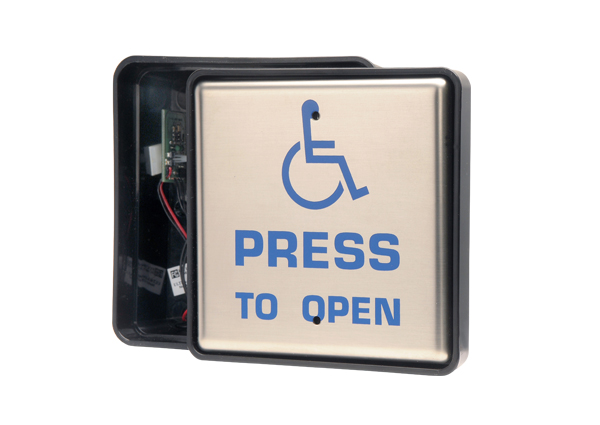

4.5" Universal Box: 5.06” x 5.06” x 1.75” (129x129x45)
Utility Box: 4.00" x 4.00" x 4.00" (102x102x102)

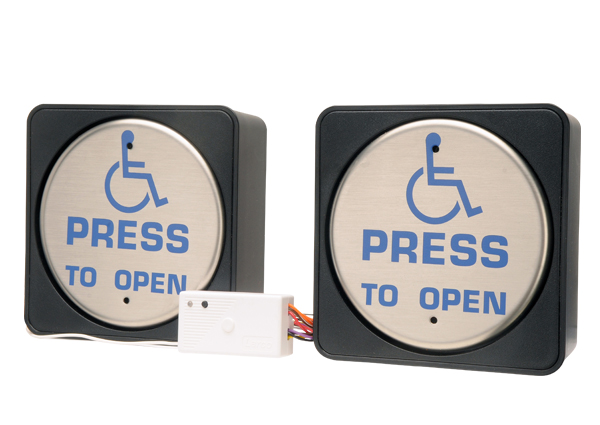

Wireless Communication433 MHz Receiver & Transmitters
300 MHz Receiver & Transmitters

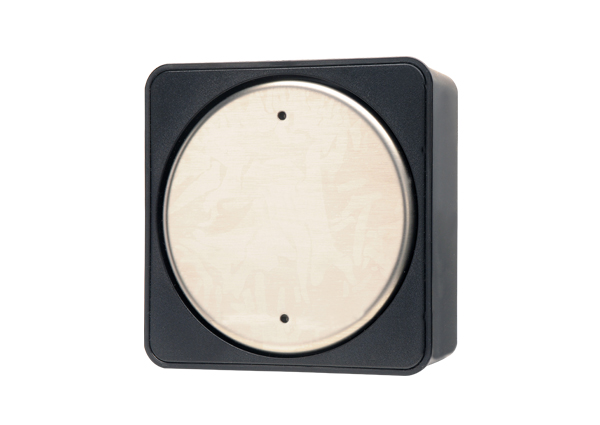

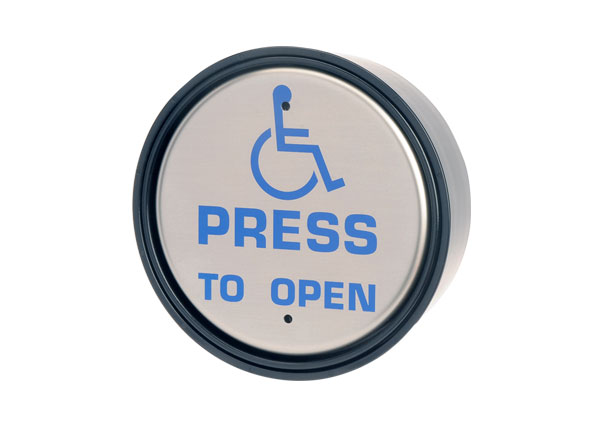

4.5" Round
Design
StyleRound
Material/Finish18-gauge Stainless Steel/Brushed Finish
Standard EngravingsPlain (None)
Handicap Logo/Press To Open (HPTO)
Press To Open (PTO)
Handicap Logo (HCP)
Part Number(s)See Hardware Catalog at top of page for details
Operation
Electrical/PowerLow Voltage:
12-24 VAC/VDC
9 VDC (Battery) with Wireless Transmitter
Operating Temperature-40˚C to 60˚C
Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C)
Dimensions (WxD)Switch: 4.50" Diameter x 1.50"(115x38)
Radio-Control Signal RangeUp to 100 feet with Larco's Ultra Small Transmitters
Activation Switch Type(1) NO or NC
Activation Switch Rating15A @ 125 or 250 VAC or 2A @ 48 VDC
Options
MountingSwitch only (includes Adapter Plate)
4.5” Round Box: 5.17” Diameter and 1.85” (132x47)
4.5” Universal Box: 5.06” x 5.06” x 1.75” (129x129x45)
Utility Box: 4.00" x 4.00" x 4.00" (102x102x102)
Wireless Communication433 MHz Receiver & Transmitters
300 MHz Receiver & Transmitters
